Expert LE-2000

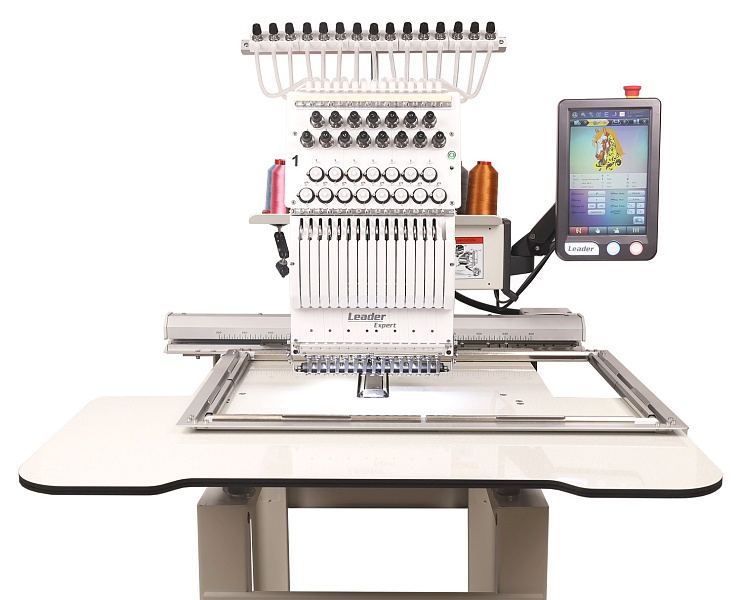

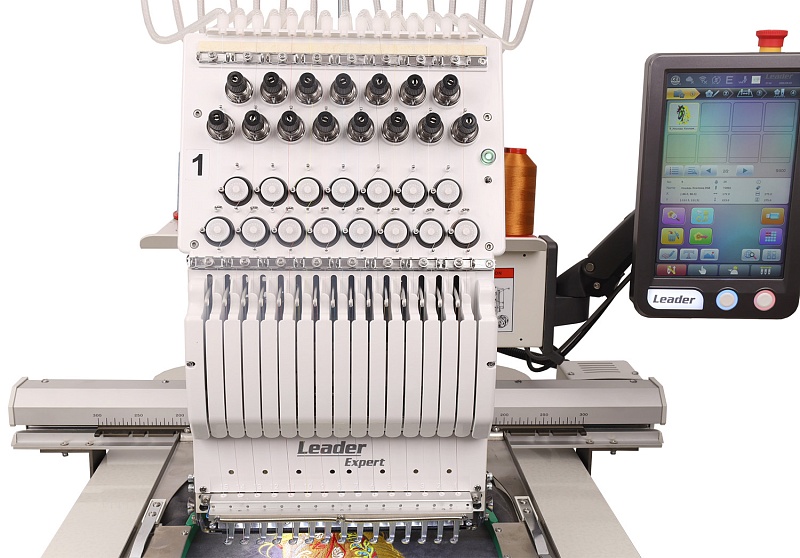

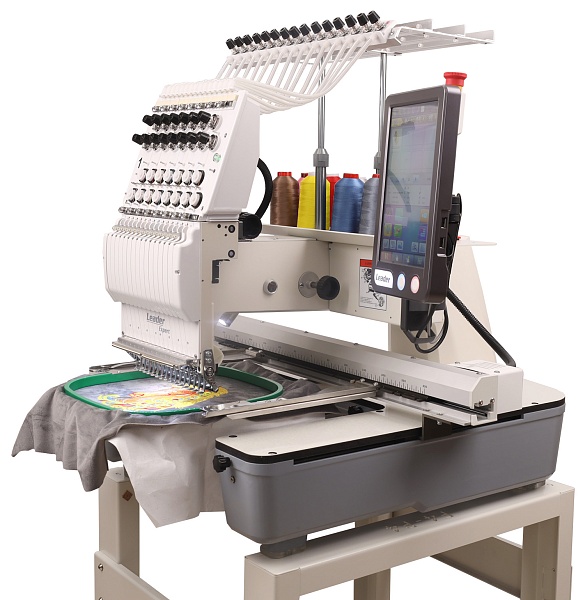

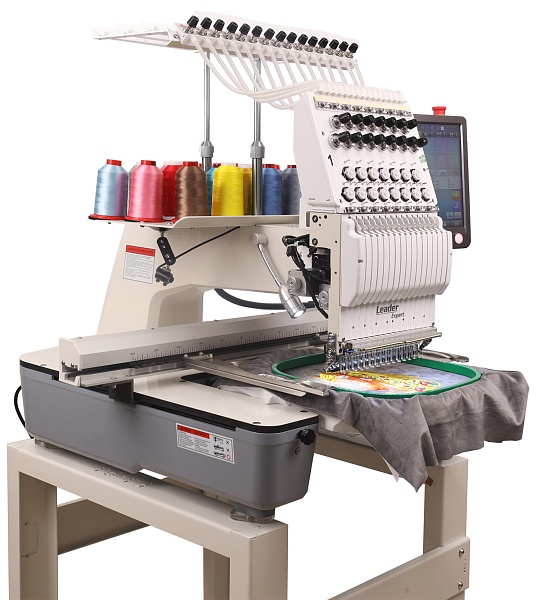

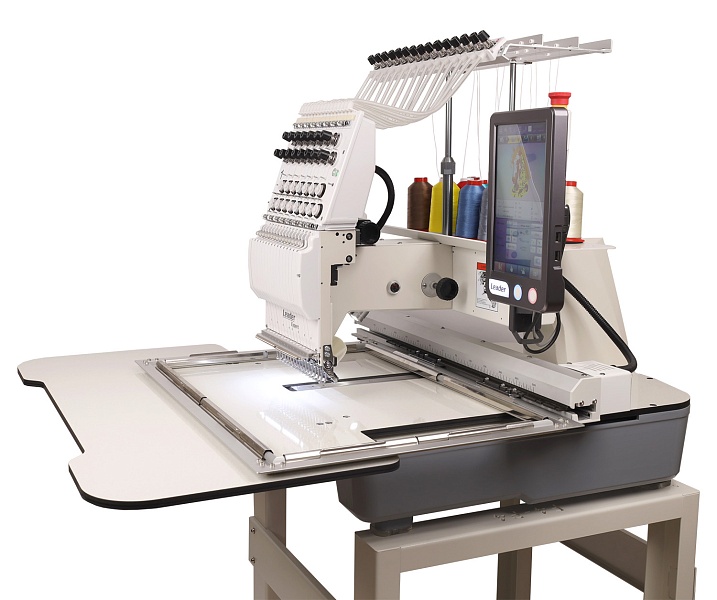

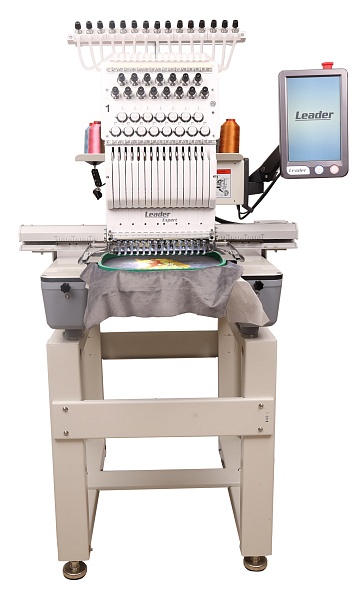

Industrial embroidery machine Leader Expert LE-2000
Automatic industrial single-head 15-needle embroidery machine Leader Expert LE-2000 with a high-resolution 10.1” HD TFT color touch monitor.

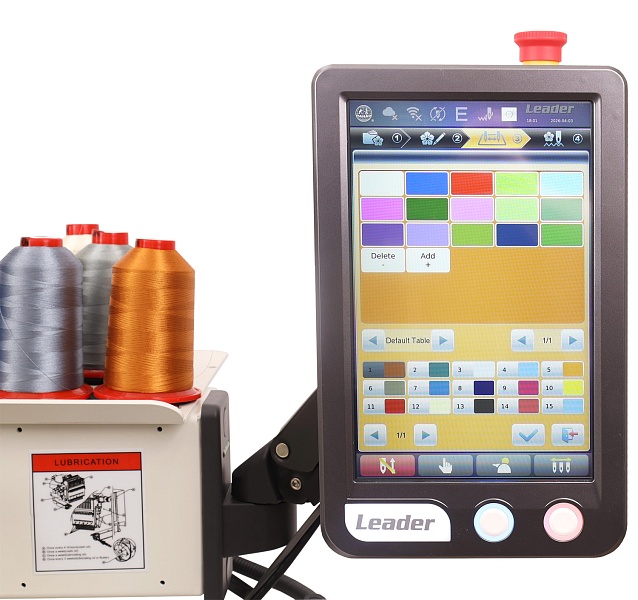

Monitor and controls

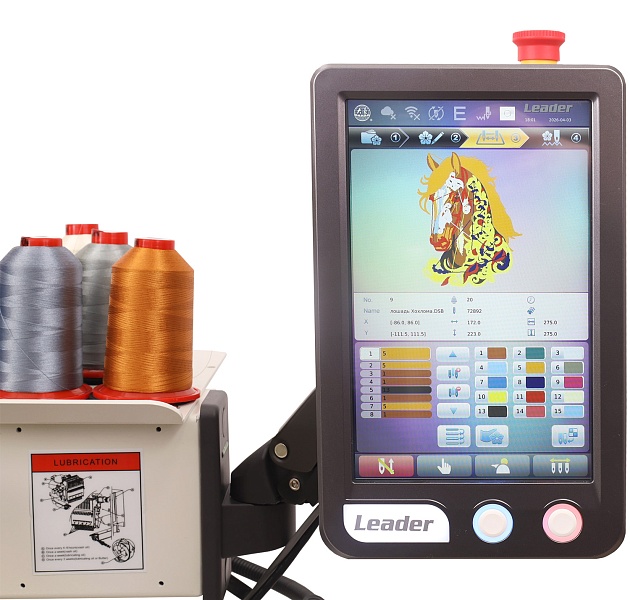

Ergonomic 10.1” HD TFT liquid-crystal display with touch screen.
Resolution — 1280 × 800, realistic color reproduction of the embroidered design.
Wide viewing angle.
The embroidered design is displayed on the screen in real time.
Clear interface.
Information menu language selection — 24 languages.
Convenient rotary monitor mounting mechanism with adjustment along two axes.
Main shaft rotation handle and indicator displaying the required rotation angle of 100 degrees.
The emergency stop button is conveniently located at the top of the monitor.
Two brightly illuminated operating buttons: “Start” — operating mode, “Stop” — stop and stitch-return mode.
Multitasking: the control panel can be operated during embroidery.
Working with designs
The machine has 3 USB ports for loading embroidery designs from a USB drive into the machine’s memory and exporting them from the memory. Supported formats: DST/DSB.
Four information windows help edit parameter settings and create an embroidery design by selecting the required hoop.
Designs can be edited directly on the display screen:
rotation by 90%;
copying;
mirroring;
rotation by a specific angle;
enlarging and reducing;
duplicating the design along both axes;
adding fonts;
changing the position and embroidery speed;
combining patterns;
cyclic embroidery;
creating embroidery with appliqué or 3D embroidery.
The machine allows design parameters to be saved in its memory, the color and starting point to be changed, as well as offering the unique ability to add shades to the color palette to create the required embroidery design.
When connected to WI-FI, it is possible to:
embroider graphic images drawn by hand on the monitor screen;
add different embroidery fonts;
convert images in .jpg, .png and .bmp formats into an embroidery format.
Design features

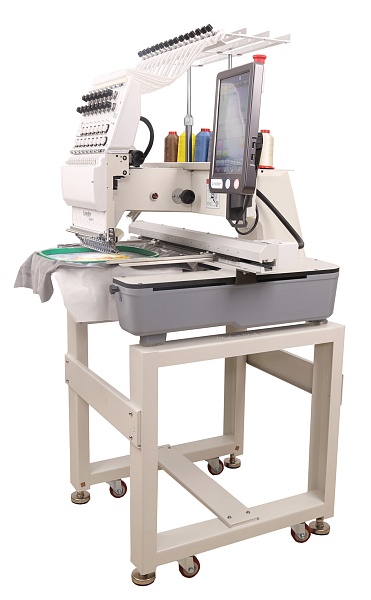

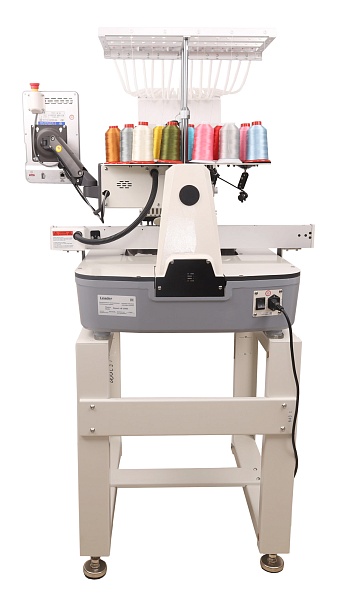

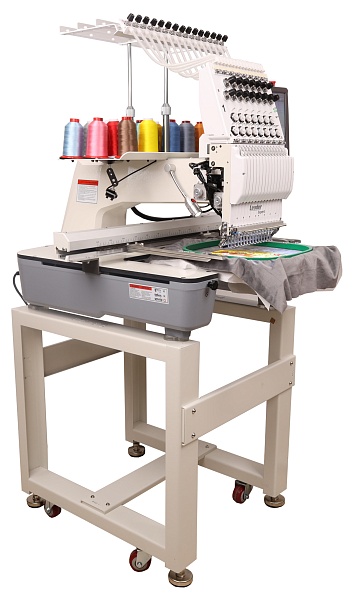

The machine comes with a wheeled stand table. Its distinctive feature is the free suspension of the embroidered item. Reliable fabric fixation in the hoop ensures perfect embroidery.

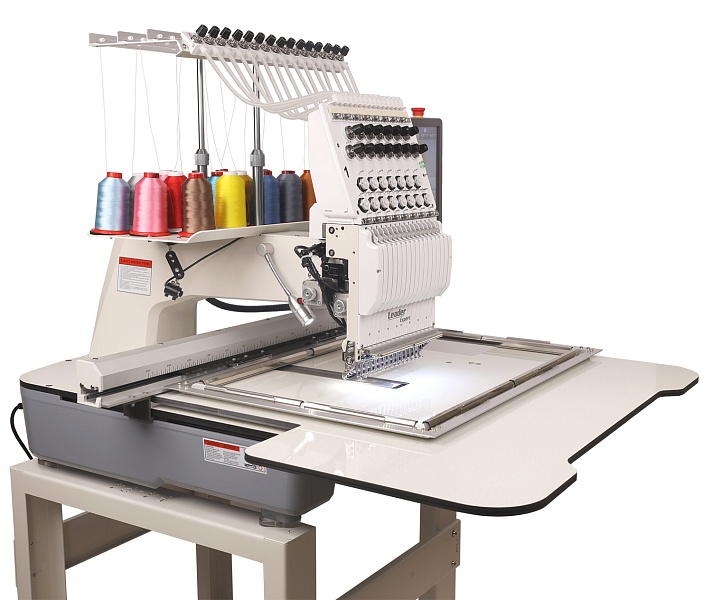

The tabletop is included and is required when working with three-dimensional projects, embroidering in large 510 × 340 mm hoops and in a border frame.

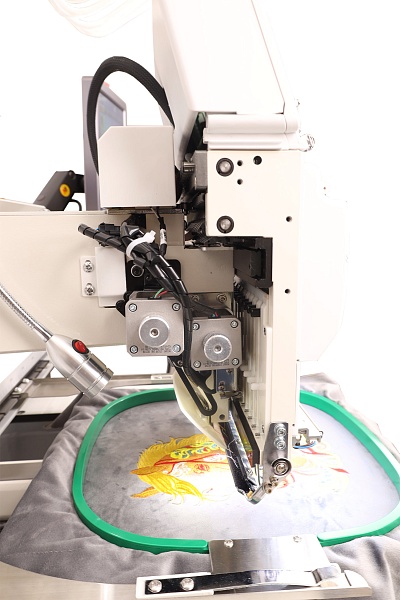

The rotary built-in laser positioner indicates the exact location of the design — the needle penetration point.

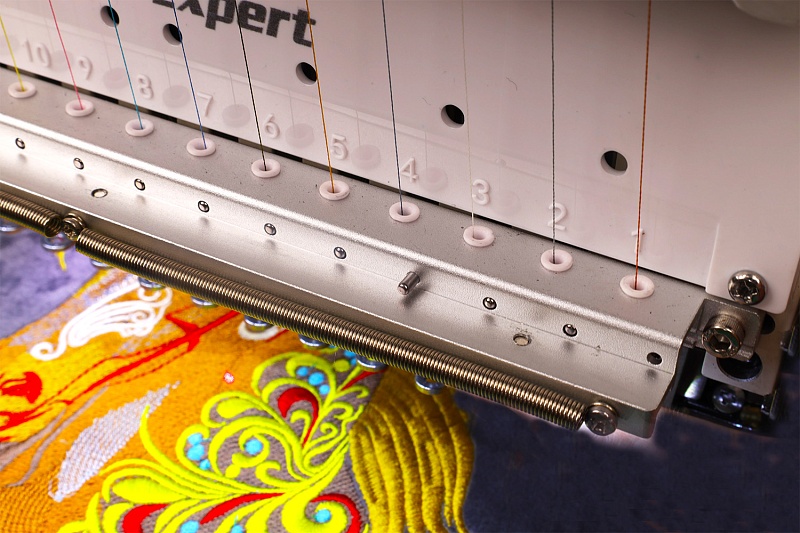

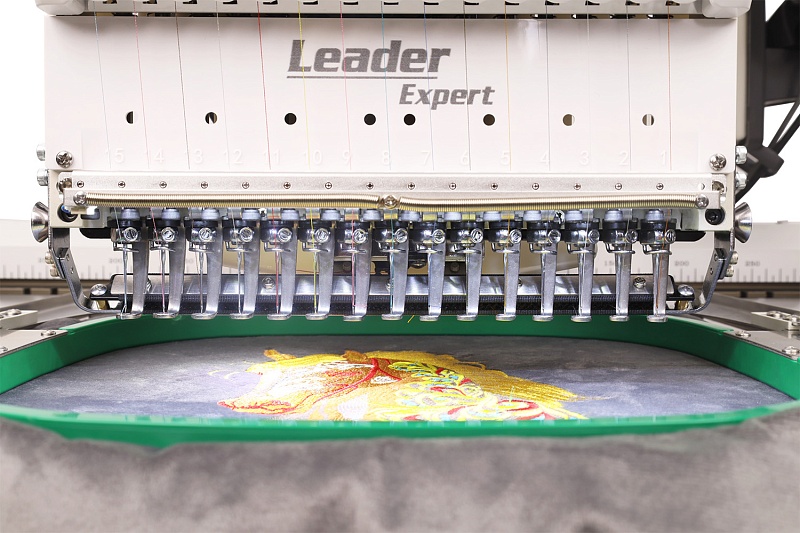

LED lighting with adjustable direction brightly illuminates the large embroidery field. 18 LEDs are positioned above each needle, making the threading process easier.

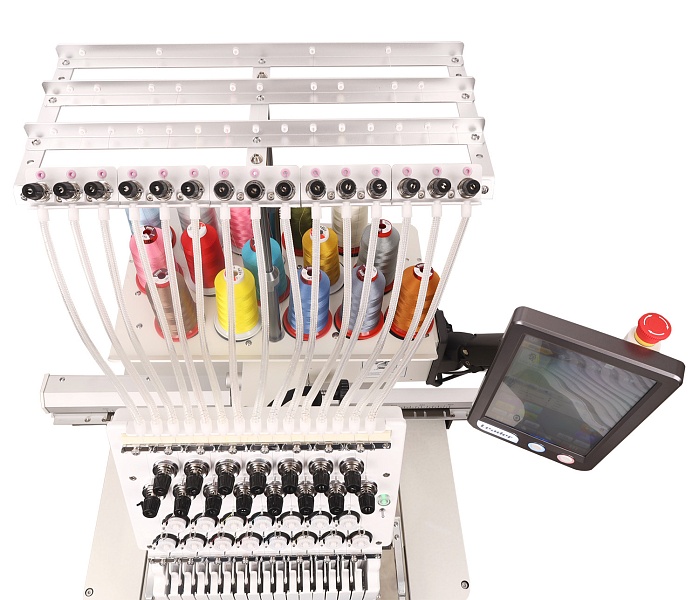

The upper thread holding system after automatic trimming speeds up the machine threading process.
A convenient thread-catching mechanism and the option of manually extending the thread take-up hook (wiper) are provided. The needle color can be changed manually, and the machine can be switched to another needle bar. The level is intended to align the machine relative to the floor.
Self-diagnostic functions allow monitoring the condition of the system and mechanisms.
The machine remembers the last embroidery segment. In the event of an unexpected power outage, it will offer to continue embroidering the design, provided that the design was saved in the machine’s memory.
Materials and applications

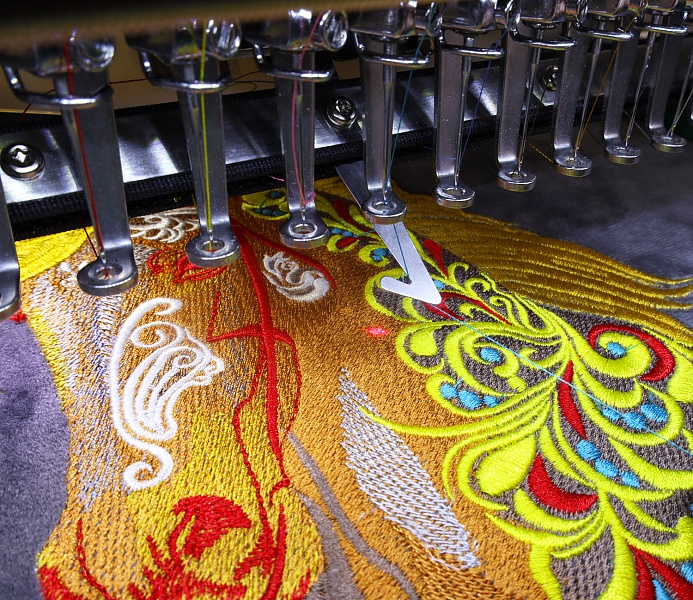

It is possible to embroider on different types of fabrics: denim, organza, knitwear, thin leather, velvet and velour.
Leader Expert LE-2000 is designed for embroidery both on finished products and on cut elements made of all types of materials, including thin leather.
This machine for creativity and inspiration is also suitable for small and medium-sized businesses. It is the best option for the hospitality and restaurant industry: embroidery on robes, slippers and other products.
Technical specifications
Number of embroidery heads: 1.
Number of needles per head: 15.
Maximum embroidery field: 600 × 400 mm.
Maximum embroidery speed: 1200 stitches per minute.
Automatic functions: needle (color) change, thread trimming, lower and upper thread break sensors.
Internal memory capacity: 100,000,000 stitches (800 designs).
Stitch length range: 0.1–12.7 mm.
Power: 150 W.
Voltage: 220 V.
Gross weight: 194 kg.
Box dimensions: W 1130 × D 850 × H 850 mm.
Equipment
Metal wheeled stand table.
Supports. The machine head legs with shock absorbers are securely fixed to the table with mounting screws.
Tabletop for supporting the hoops.
Border frame with stainless steel clips:
embroidery field — 600 × 400 mm, 1 pc.;
inner frame dimensions — W 630 × D 430 mm.
Square hoops (B):
embroidery field — 375 × 375 mm, 2 pcs.;
inner hoop dimensions — W 395 × D 395 mm.
Square hoops (C):
embroidery field — 275 × 275 mm, 2 pcs.;
inner hoop dimensions — W 295 × D 295 mm.
Round hoops (D):
embroidery field diameter — 180 mm, 2 pcs.;
inner hoop dimensions — Ø 190 mm.
Round hoops (E):
embroidery field diameter — 130 mm, 2 pcs.;
inner hoop dimensions — Ø 150 mm.
Round hoops (F):
embroidery field diameter — 100 mm, 2 pcs.;
inner hoop dimensions — Ø 120 mm.
Round hoops (G):
embroidery field diameter — 70 mm, 2 pcs.;
inner hoop dimensions — Ø 90 mm.
Spare parts and accessories: set of tools and spare parts.
Separate electric bobbin winder.
220 V power cord.
Instruction manual in electronic format.
Packaging and transportation
A case with the necessary tools and an electronic bobbin winder for winding thread onto the bobbin are included.
The machine with all accessories is packed in a single OSB board crate. The machine is secured to the bottom of the crate with two bolts, ensuring reliable and guaranteed protection during transportation.
