Expert LE-900

Embroidery machines

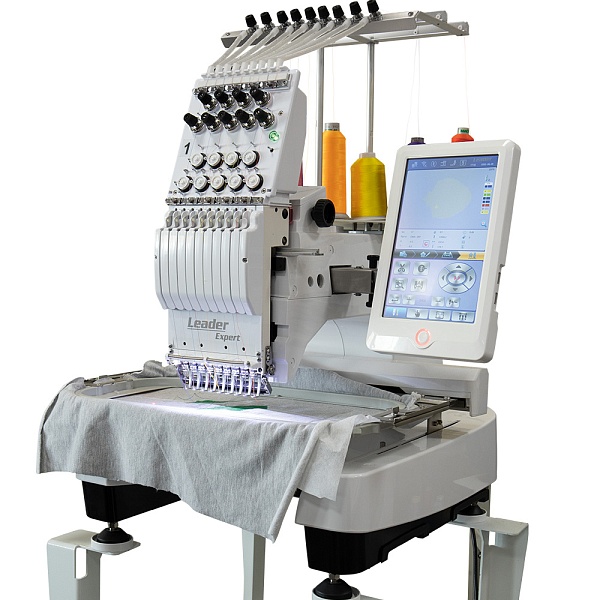

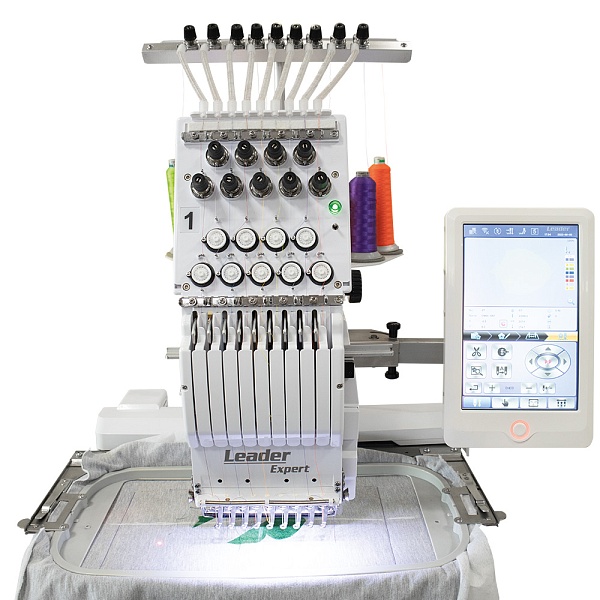

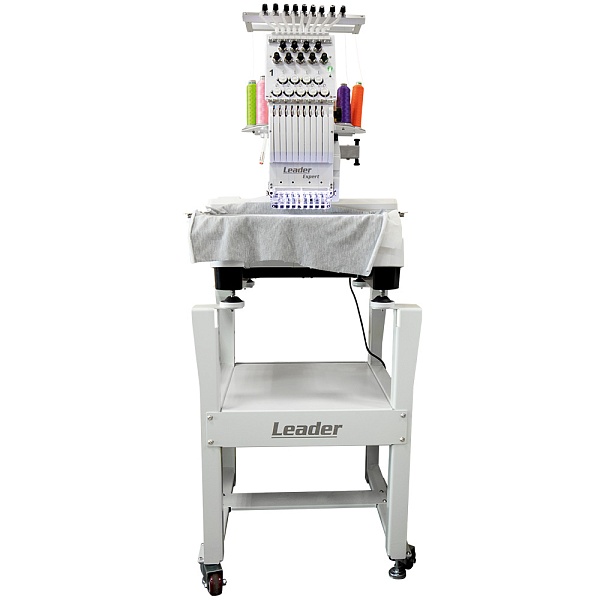

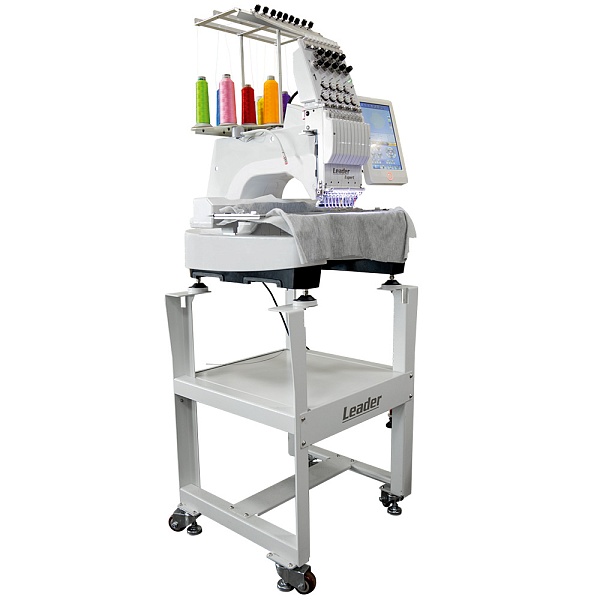

Industrial Automatic Embroidery Machine Leader Expert LE-900

Number of embroidery heads: 1

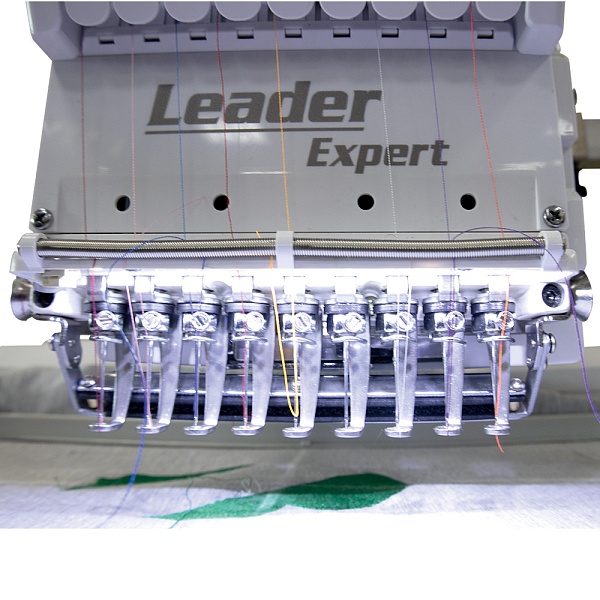

Number of needles per head: 9
Maximum embroidery speed in the hoop: 1200 stitches/min
Maximum embroidery field: 360 × 200 mm
Needle (color) change and thread trimming: automatic

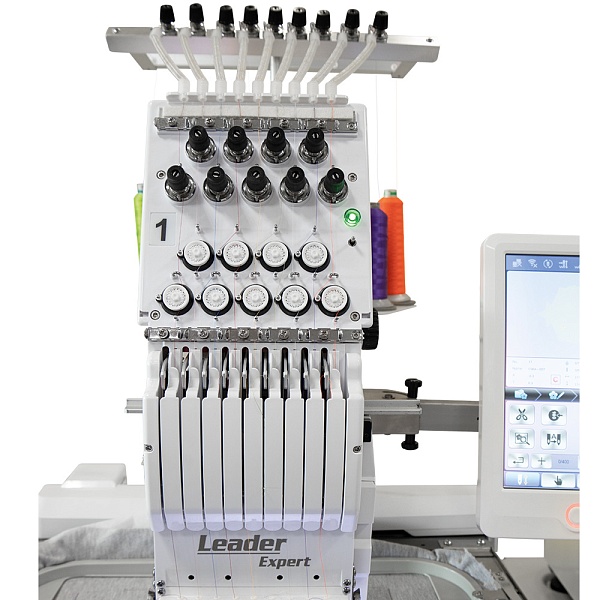

Professional automatic compact single-head 9-needle embroidery machine Leader Expert LE-900 with an LCD display, supplied with accessories. Designed for industrial shuttle-stitch embroidery controlled by a specialized hardware and software complex and special software.

The machine allows embroidery on both finished products and cut pieces made from all types of materials, including leather.

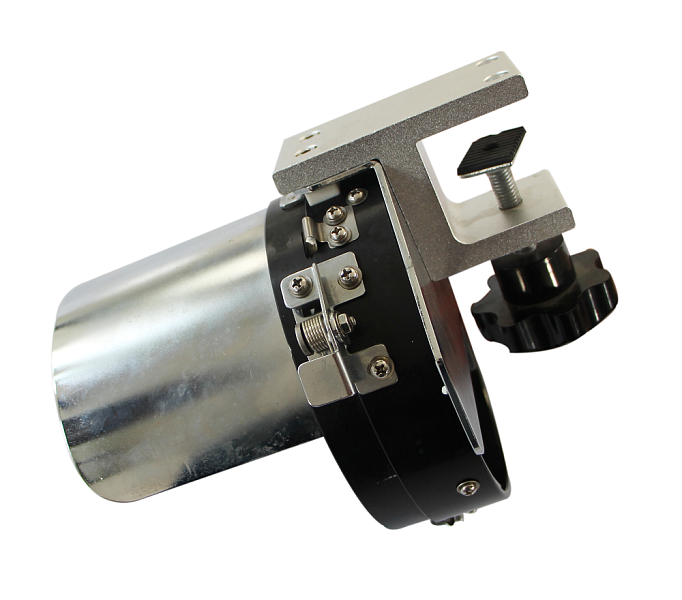

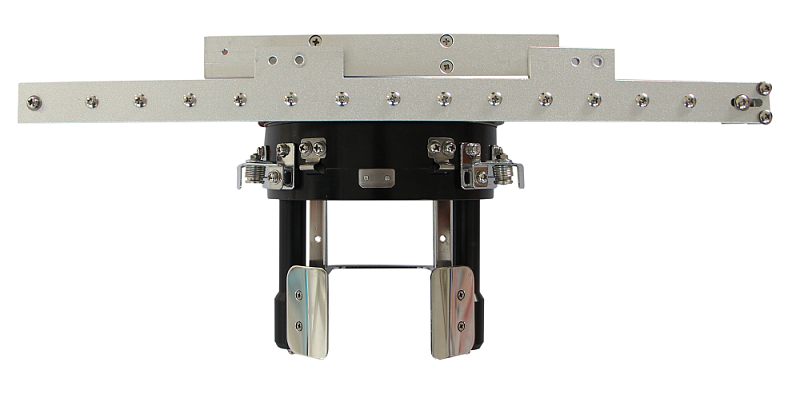

Cap embroidery device is not included and must be purchased separately.

Features

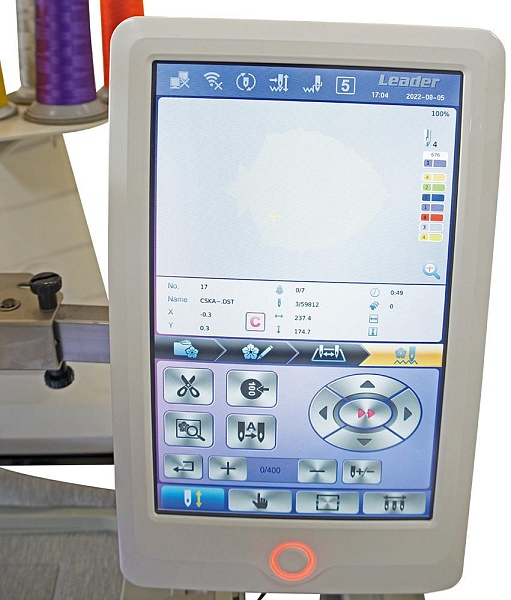

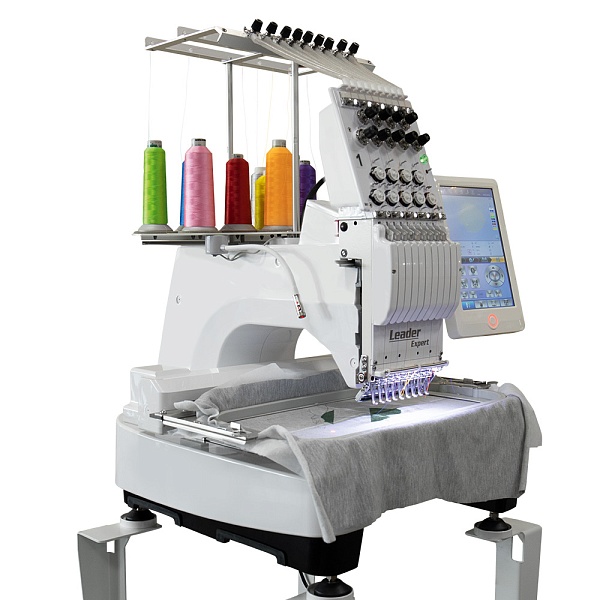

Ergonomic 10.1″ HD TFT liquid crystal display with a touchscreen and a resolution of 1280 × 800.
Realistic color reproduction of the embroidered pattern.
Wide display viewing angle.
Real-time display of the embroidered design on the screen.
2 USB ports for data input and output.
Intuitive interface.
Multitasking: the control panel can be operated during embroidery.
Saving design parameters in the machine's memory: color change and starting point.
Ability to duplicate and combine designs, as well as perform cyclic embroidery.
Appliqué (offset).
Self-diagnostic functions for the system and mechanisms.

Specifications

Number of needles: 9
Number of heads: 1
Laser pointer: mounted on a magnetic holder
Maximum embroidery field: 360 × 200 mm
Maximum embroidery speed: 1200 stitches/min
Internal memory capacity: 100,000,000 stitches (800 designs)
Maximum design size: up to 2,000,000 stitches and up to 1000 color changes
Stitch length range: 0.1–12.7 mm (0.1 mm increments)
Automatic functions: needle (color) changes, thread trimming, lower and upper thread break sensors

Dimensions and Technical Parameters

Maximum power: 200 W
Voltage: 220 V
Packaging: wooden crate (machine supplied with a table)
Crate dimensions: length — 85 cm, depth — 77 cm, height — 88 cm
Net weight: 100 kg
Gross weight: 134 kg
