IMPRESSION 3

Embroidery machines

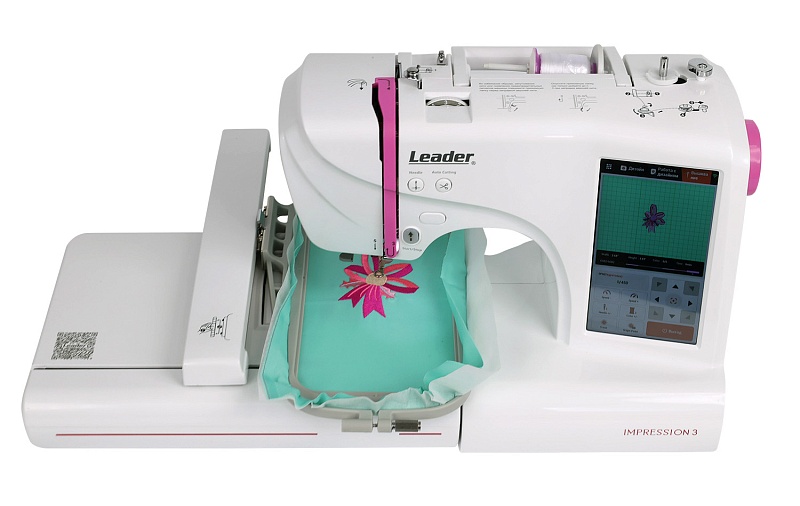

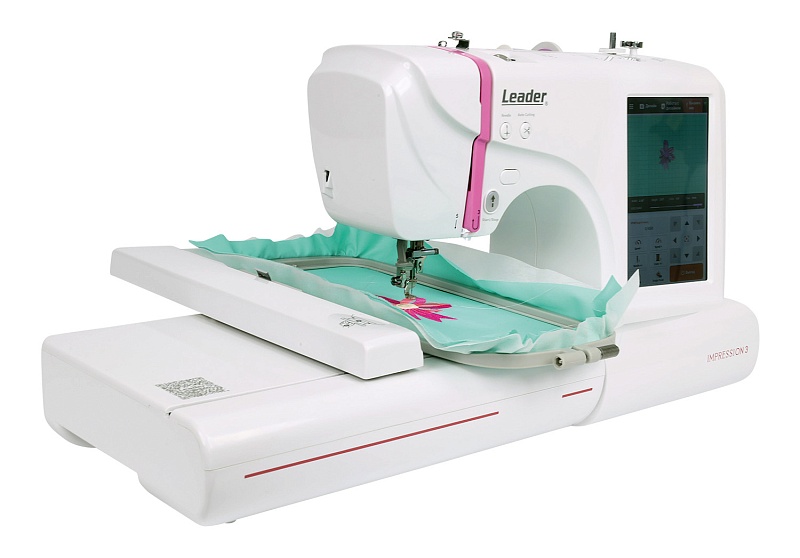

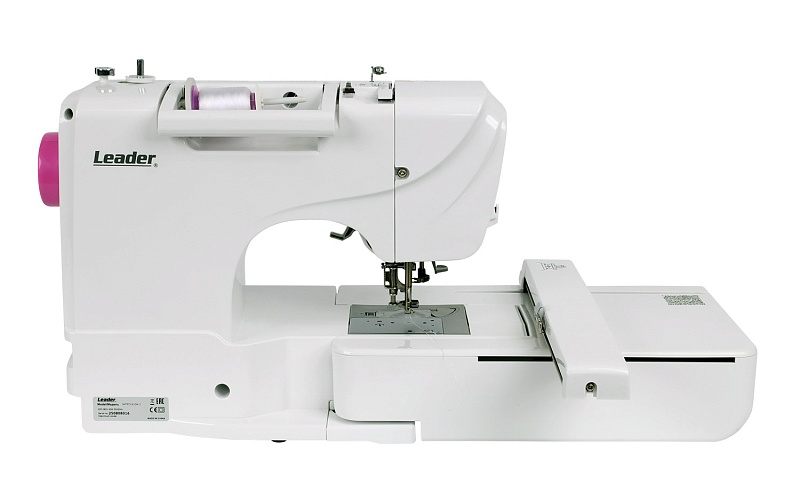

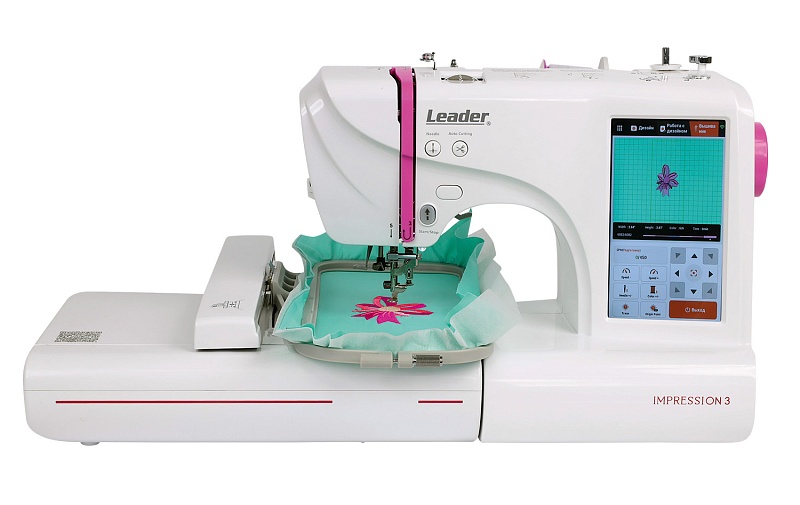

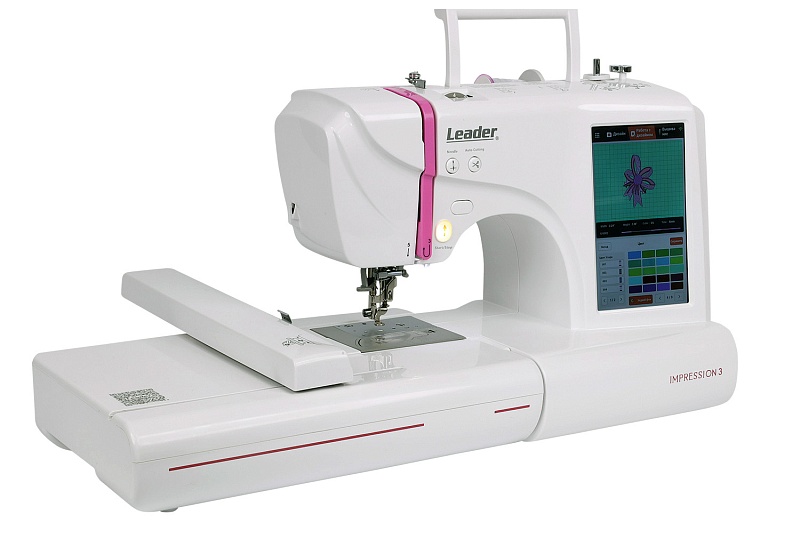

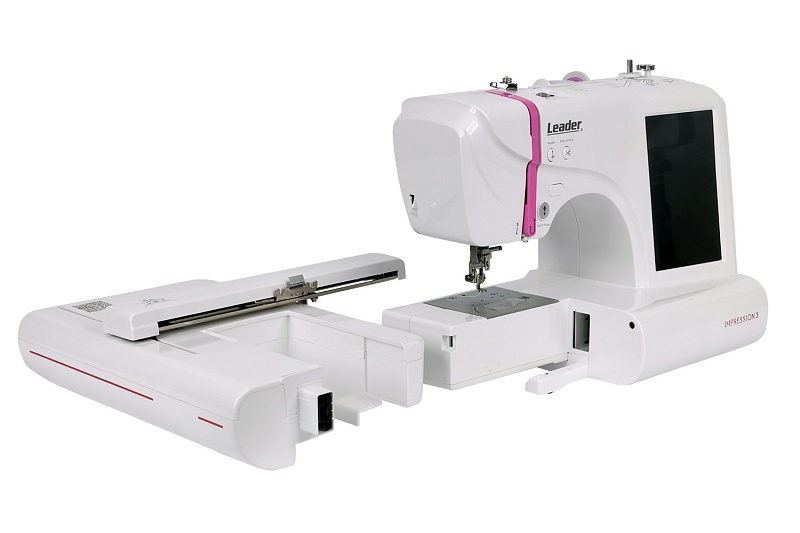

Embroidery machine Leader IMPRESSION 3

154 built-in embroidery designs
9 font types
Maximum embroidery area — 100 × 235 mm
Maximum embroidery speed — 650 rpm
Automatic thread trimming
Convenient design editor on a large color 7-inch LCD touchscreen
Upper and lower thread breakage sensor, return to the break point by stitches or colors, embroidery resumption
Programming of the remaining thread length when trimming jump stitches
Advanced automatic needle threader

Description

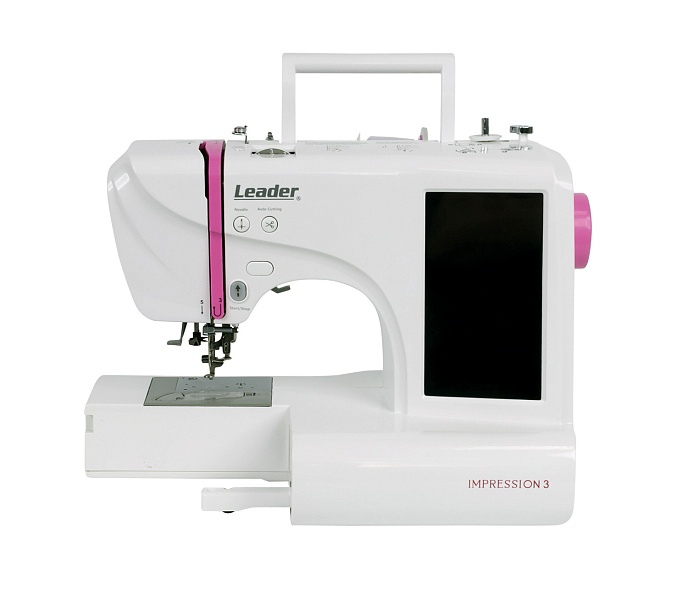

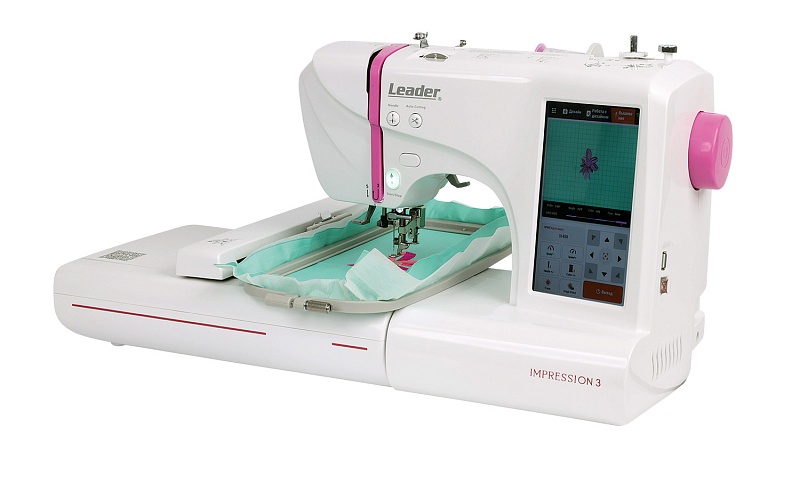

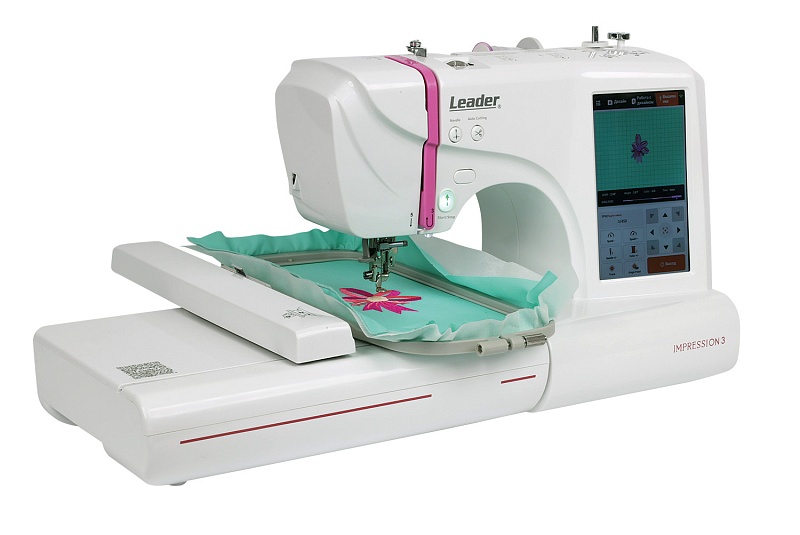

Leader IMPRESSION 3 is a multifunctional household embroidery machine with a large color touchscreen Russified LCD display with a 7-inch (175 mm) diagonal.

This is an excellent choice for beginners: the machine's interface is convenient and intuitive even for first-time users.

The built-in 154 embroidery designs include 118 designs on various themes, 12 designs from the children's collection, and 24 decorative frames for monograms. Embroidery of letters using 9 font types is also available.

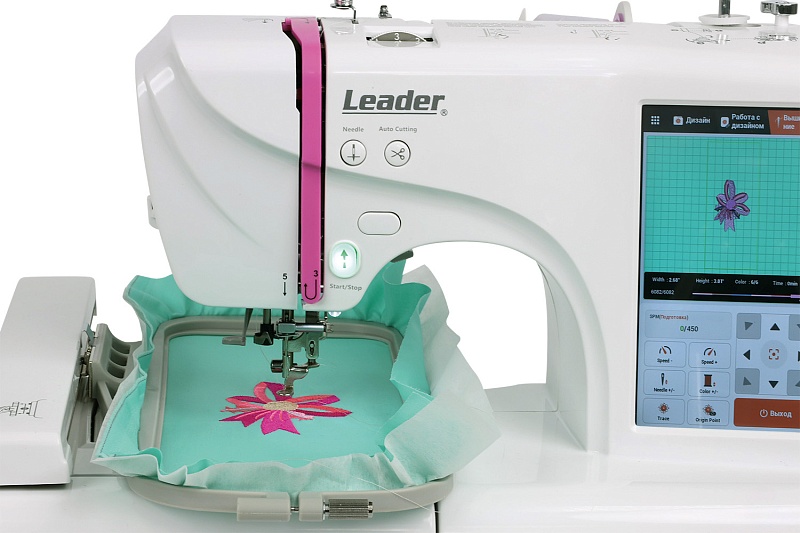

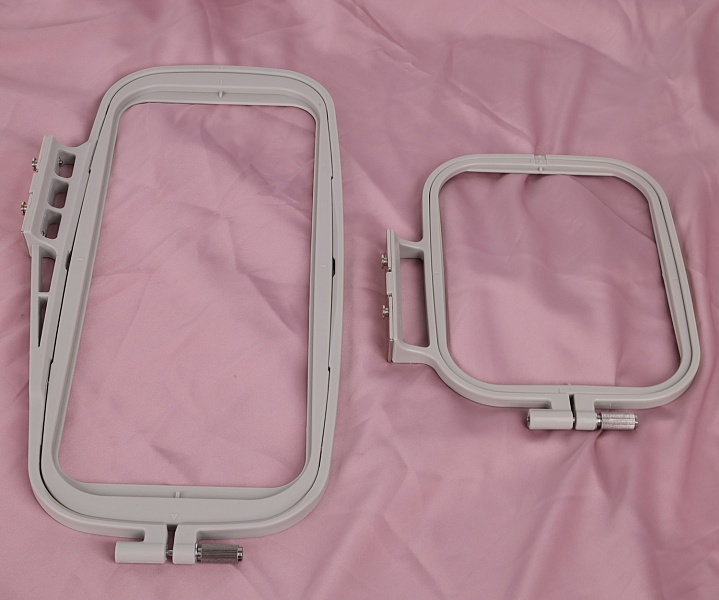

Leader IMPRESSION 3 allows you to create combinations of several bright designs in one interesting project and embroider in the large 100 × 235 mm hoop or in the 100 × 100 mm hoop.

Embroidery Design Editor

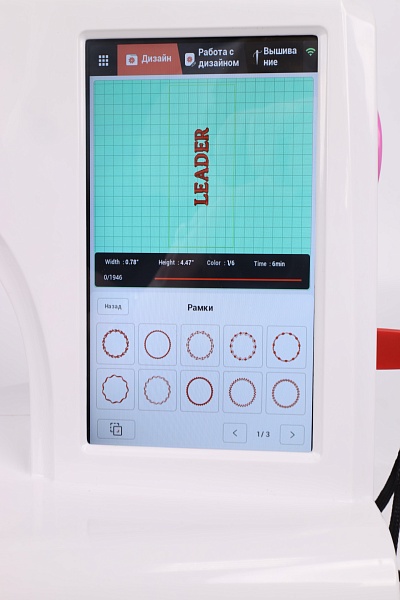

Embroidery designs are edited on a large color touchscreen Russified display. The following functions are available:

combining and merging several design objects;
horizontal and vertical mirroring;
rotating the design by 1°, 10° and 90°;
grouping objects;
scaling and resizing along the X and Y axes;
changing the thread color;
changing the color of the main embroidery field and matching the color to the fabric;
deleting designs from the saved folder;
moving forward and backward by 1, 10 or 100 stitches;
moving forward and backward by one color;
saving a combined design in the machine's memory;
tracing the embroidery outline to determine the embroidery boundaries and correctly position the design in the hoop.

Font Editor

The font editor allows you to use L, M and S letter sizes, as well as perform the following operations:

changing the letter size;
arranging a combination of letters horizontally, at an angle and along an arc;
changing the distance between letters;
editing each letter;
changing the stitch density;
changing the color of a specific letter and merging letter colors;
changing the angle, height and spacing between letters;
rotating, stretching and compressing letters.

Ease of Use

New embroidery designs are uploaded and saved in the machine's memory via USB.

The user-friendly Russified display menu allows you to program and set the required functions. You can choose one of the 12 available display menu languages.

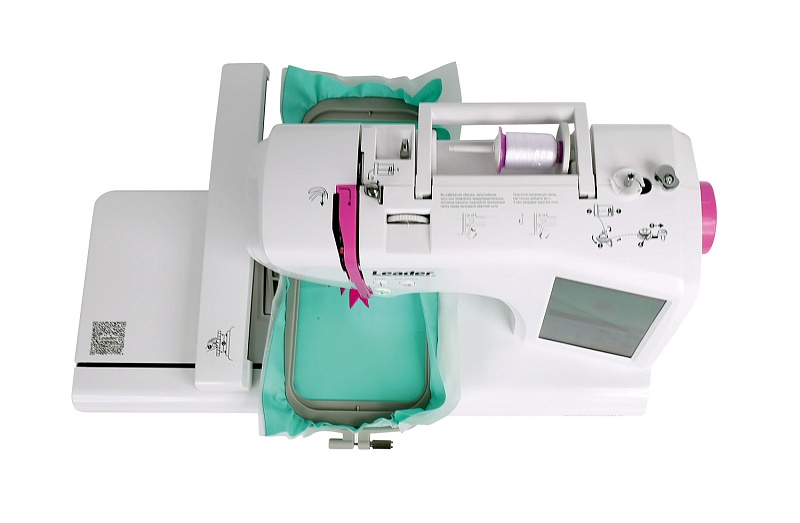

When the machine is switched on, an information window with tips and warning messages appears on the display. Convenient and quick threading of the upper thread and bobbin thread is ensured by helpful diagrams with instructions printed on the machine's panels.

If necessary, you can program the remaining thread length when trimming jump stitches. The machine is equipped with upper and lower thread breakage sensors. Special buttons allow you to return to the break point by stitches or colors.

The machine remembers the last embroidery design and, when switched on, offers to embroider it again or continue embroidering an unfinished project.

Embroidery Features

The machine supports the following embroidery formats: DST, DSB.

Leader IMPRESSION 3 works on all types of fabric using special stabilizing materials, from organza to thin leather.

The maximum embroidery speed is 650 rpm. When working with large bobbins wound with 3000 or 5000 m of thread, it is recommended to use a multi-color thread stand, which is purchased separately.

With Leader IMPRESSION 3, an exciting, magical world of embroidery will open up to you!

Specifications

Display: 7-inch color touchscreen LCD display with a user-friendly interface, diagonal — 175 mm.
Built-in designs: 154 embroidery designs: 118 designs on various themes, 12 designs from the children's collection, 24 decorative frames for monograms.
Fonts: 9 types.
Hook: horizontal.
Quick start: with thread trimming.
Display menu: Russified, 12 languages.
Programmable embroidery speed: 150–650 rpm.
Programmable thread length when trimming jump stitches: 5–50 mm.
Supported embroidery formats: DST, DSB.
Maximum embroidery area: 100 × 235 mm.
Connection: USB.
Adjuster: upper thread tension.
Lighting: adjustable display brightness.
Thread trimming: automatic, built-in thread cutter.
Controls: Start/Stop button, needle positioning button.
Thread control: upper and lower thread breakage sensor.
Bobbin winding: quick, with a built-in thread cutter.
Needle threader: built-in.
Power consumption: 45 W.
Country of origin: China.
Gross weight: 12.7 kg.
Overall dimensions with unit: 580 × 350 × 300 mm.
Package dimensions: 450 × 370 × 390 mm.
