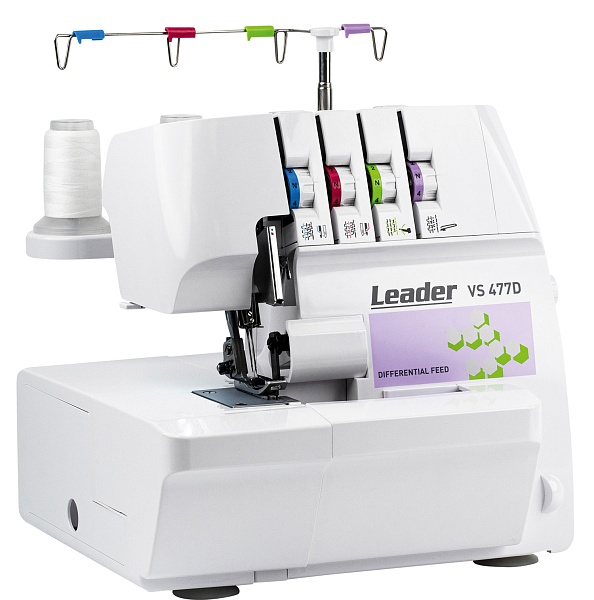

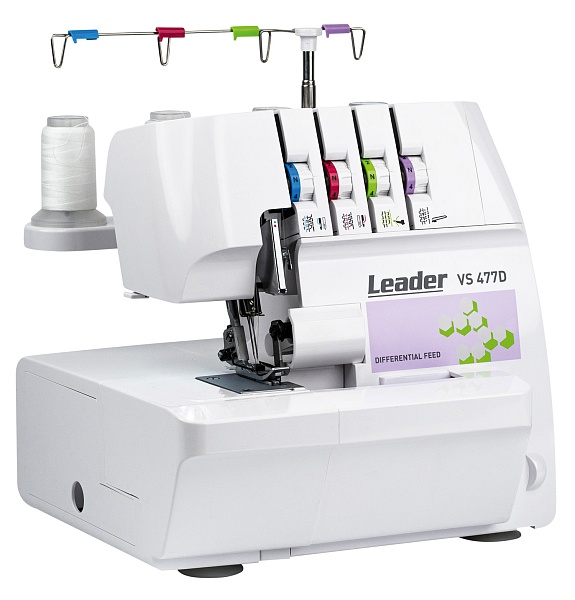

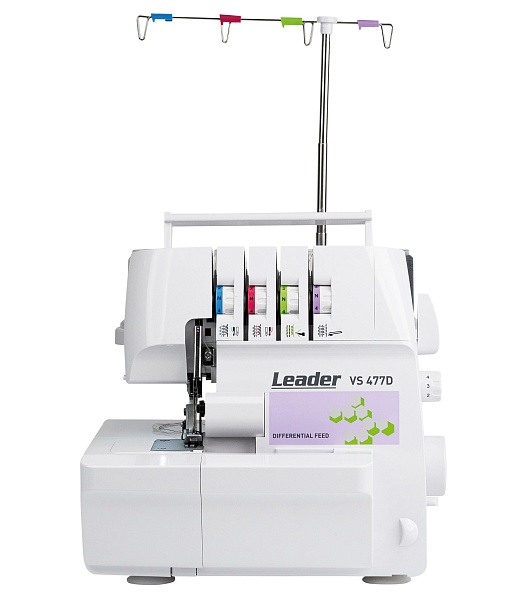

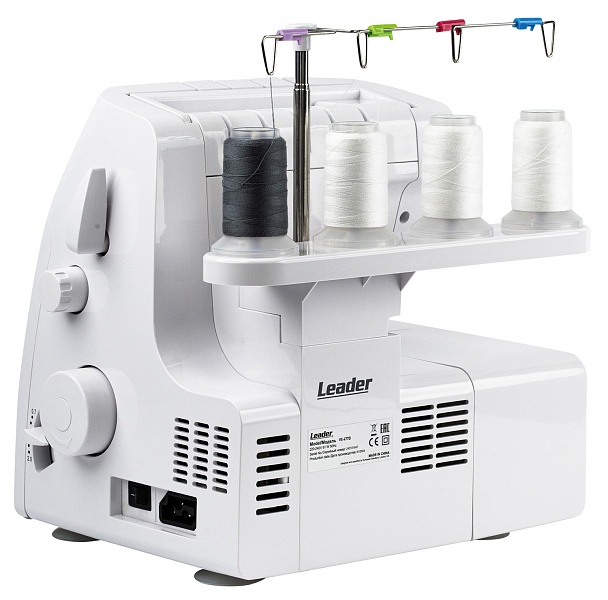

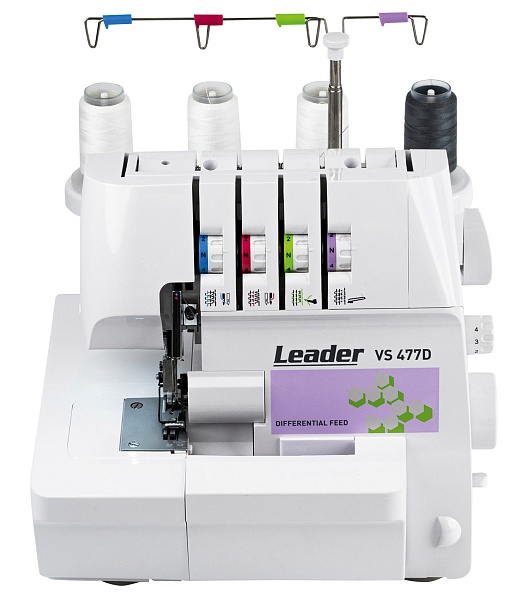

Leader VS 477D Overlocker

4-, 3- and 2-thread household overlocker with extended capabilities and all the functions necessary for operation. The model performs 14 types of stitches.

Main specifications

Number of stitches — 14 types
Presser foot pressure regulator
Open access for threading the lower looper
Removable free arm panel
Built-in pull-out accessory compartment
Waste collector
Maximum sewing speed — 1200 stitches/min
Power consumption — 91 W

Advantages and features

Convenient threading.
Open access to the lower looper.

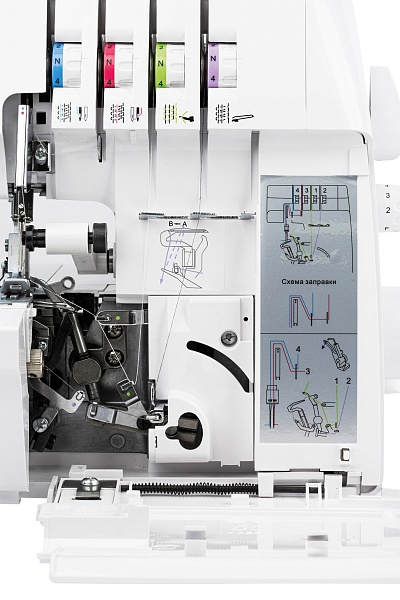

Colour-coded sequential threading diagram under the hinged looper compartment cover.
Convenient upper knife disengagement mechanism: the knife retracts and locks in the upper position.

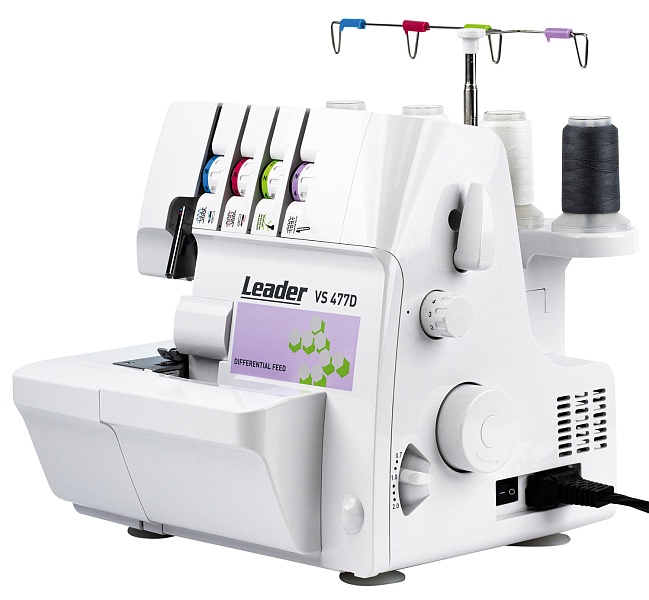

The stitch length and differential feed regulators and presser foot lift lever are conveniently located on the right.
Built-in thread cutter for convenient thread trimming.
Folding handle for transportation.
Safety interlock: the overlocker does not operate when the looper compartment cover is open.
Suction-cup feet ensure reliable fixation and stability of the overlocker on the table, and also dampen slight vibration during operation.

Differential feed is necessary when working with difficult elastic or thin fabrics.

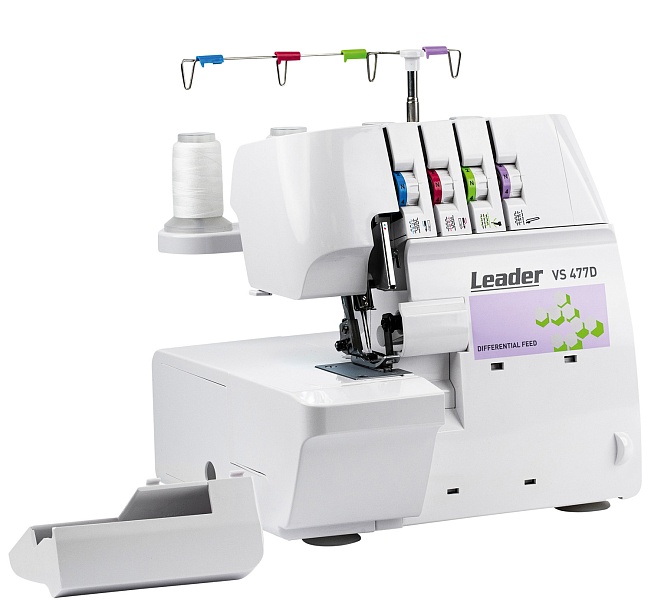

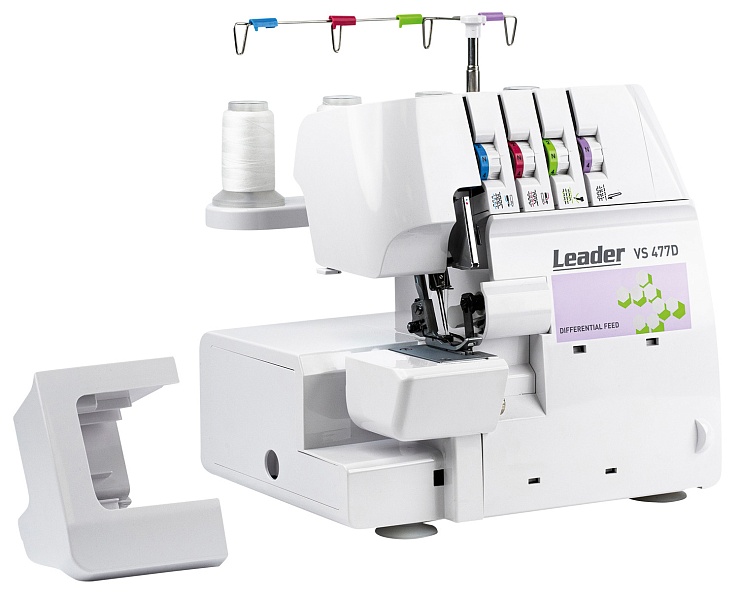

The removable free arm panel is convenient for neatly finishing items around the circumference — for example, cuffs or other cylindrical parts.

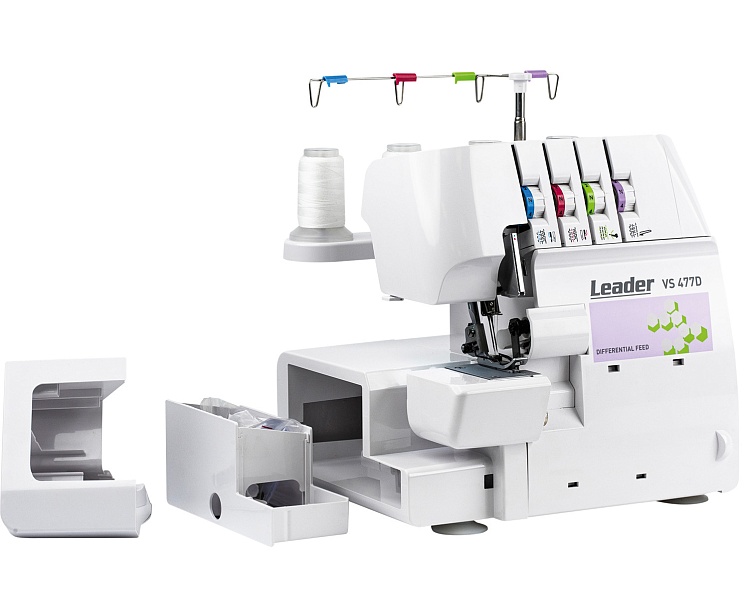

A built-in pull-out compartment for storing accessories is located in the left panel of the overlocker.

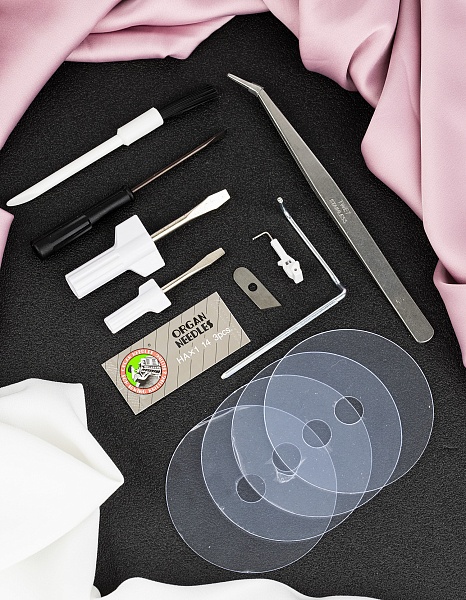

The standard package additionally includes a spare lower knife, fabric guide and converter for performing 2-thread stitches. When performing 2-thread stitches, the converter is installed on the upper looper.

The Leader VS 477D overlocker is essential for high-quality and professional finishing of garment edges.

Adjustments and operating parameters

Stitch length: F (1 mm) — 4 mm
Differential feed: 0.7–2.0
Fabric trimming width: 1–7 mm
Maximum presser foot lift: 6 mm
Presser foot pressure regulator: yes
Upper knife disengagement: yes
Access for threading the lower looper: open
Maximum sewing speed: 1200 stitches/min
Removable free arm panel: yes
Built-in pull-out accessory compartment: yes

Stitch types

4-thread safety stitch
3-thread stretch stitch
3-thread wide stitch
3-thread narrow stitch
3-thread wide flatlock
3-thread narrow flatlock
3-thread narrow rolled hem
3-thread rolled hem
2-thread wide stitch
2-thread narrow stitch
2-thread wide flatlock
2-thread narrow flatlock
2-thread narrow rolled hem
2-thread rolled hem

Additional specifications

Power: 91 W
Manufactured in: China
Gross weight: 8.5 kg
