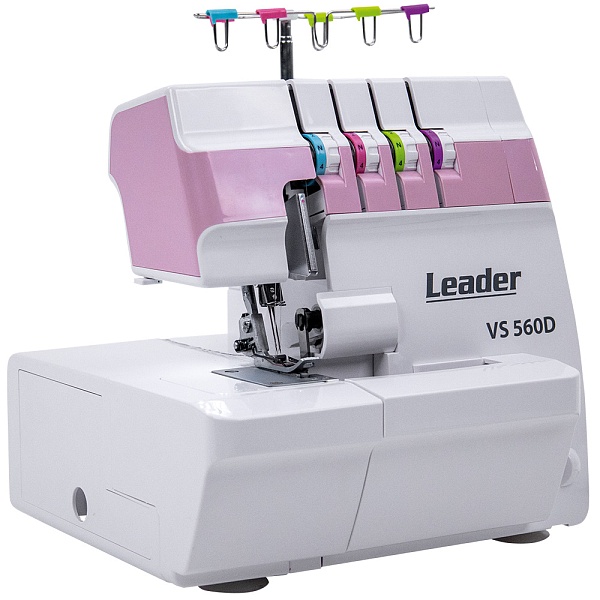

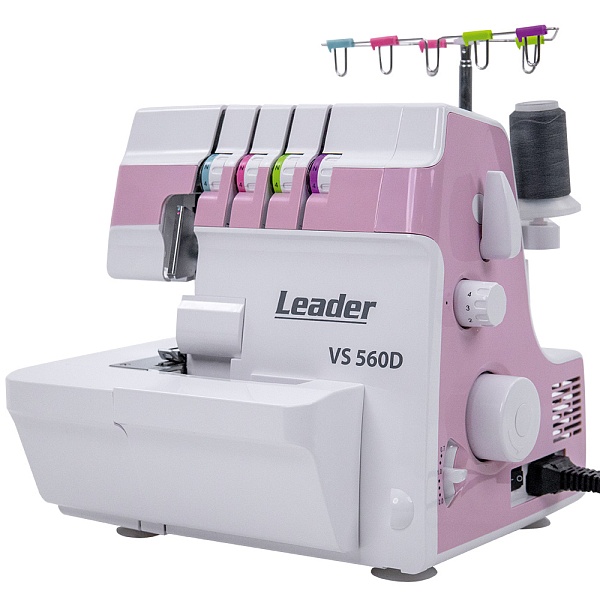

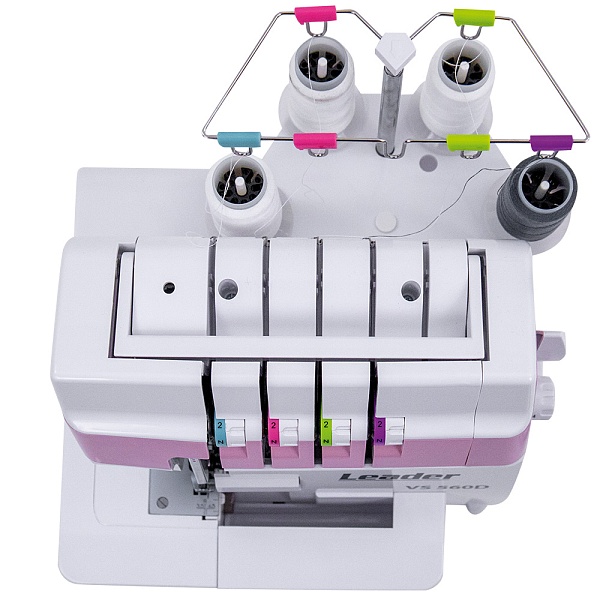

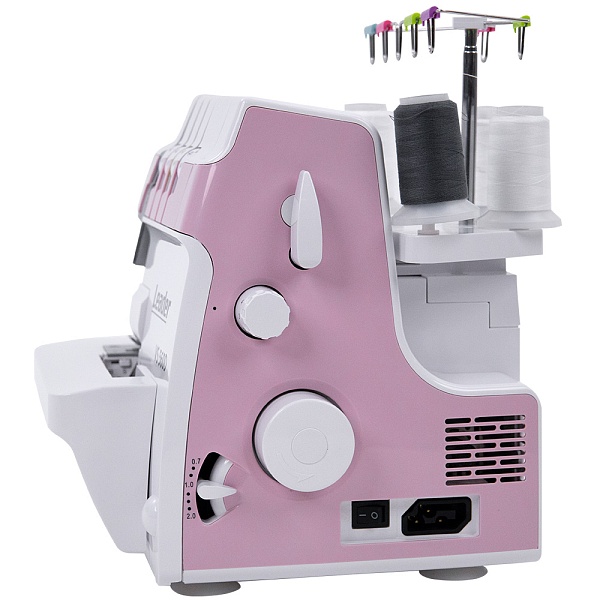

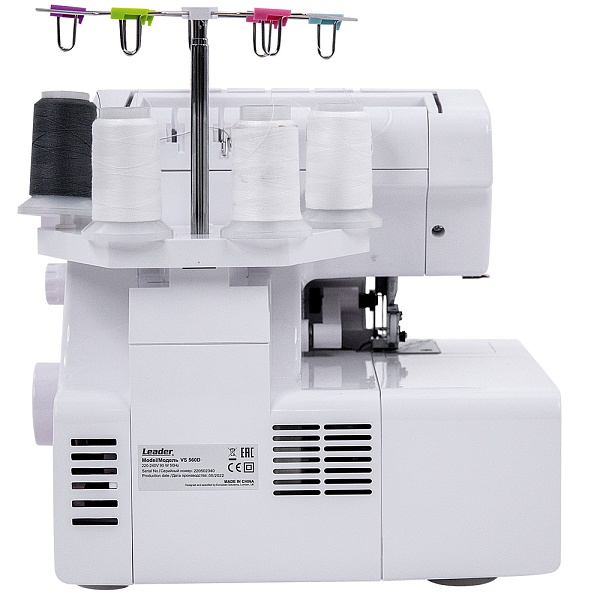

Leader VS 560D Overlocker

4/3/2-thread overlocker

  • 14 types of stitches

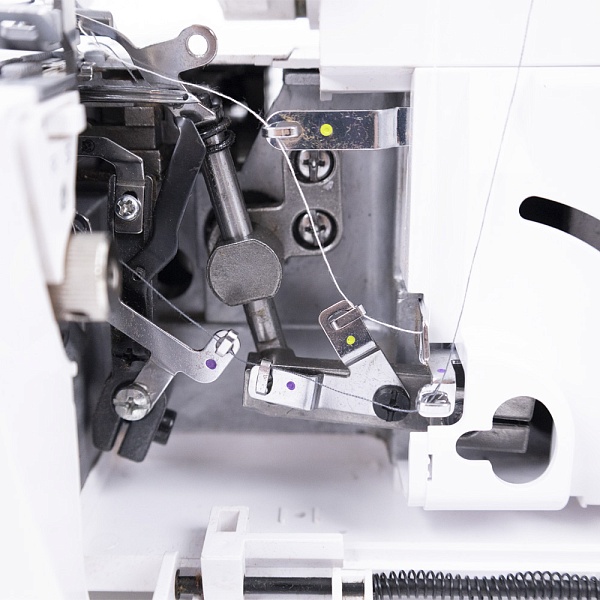

  • Easy threading of the lower looper
  • Pull-out storage compartment for accessories
  • Removable free arm panel
  • Waste collector

Description

Household 4/3/2-thread overlocker Leader VS 560D with convenient and quick threading of the lower looper.

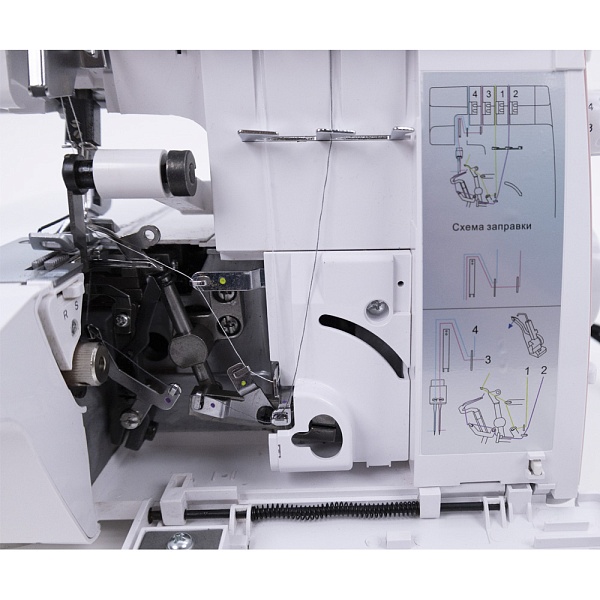

  • The threading diagram and instructions are marked on the machine panel.
  • The overlocker performs 14 types of stitches.
  • Conveniently positioned fabric cutting width adjustment dial.
  • Maximum stitch width — 7 mm.
  • Differential fabric feed helps when working with difficult stretch and knitted fabrics.
  • Very convenient upper knife disengagement mechanism.

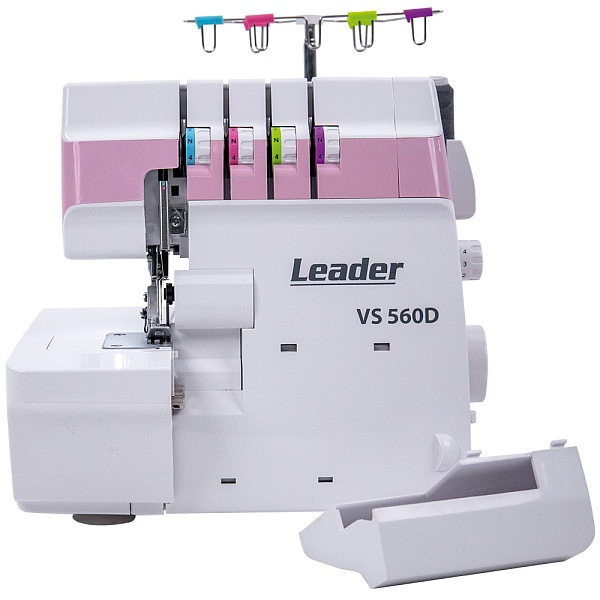

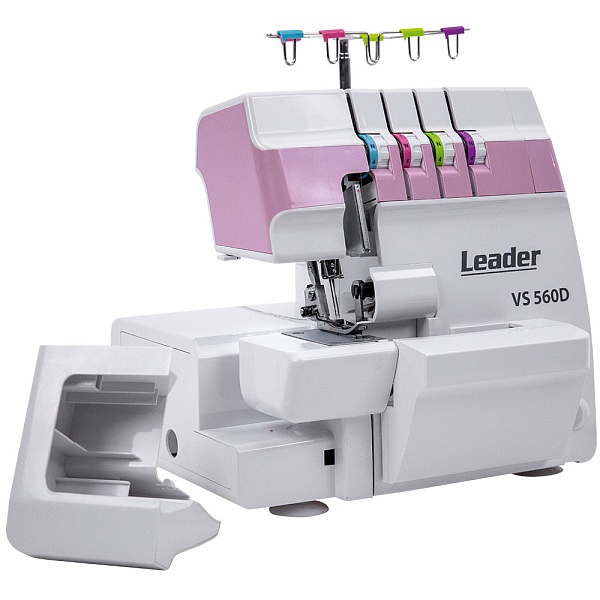

  • When finishing the seam edge, fabric trimmings fall into the installed waste collector.
  • The free arm is convenient for working with narrow and small items. To use it, remove the free arm panel.
  • With the converter installed on the upper looper, the Leader VS 560D overlocker produces beautiful rolled hems.

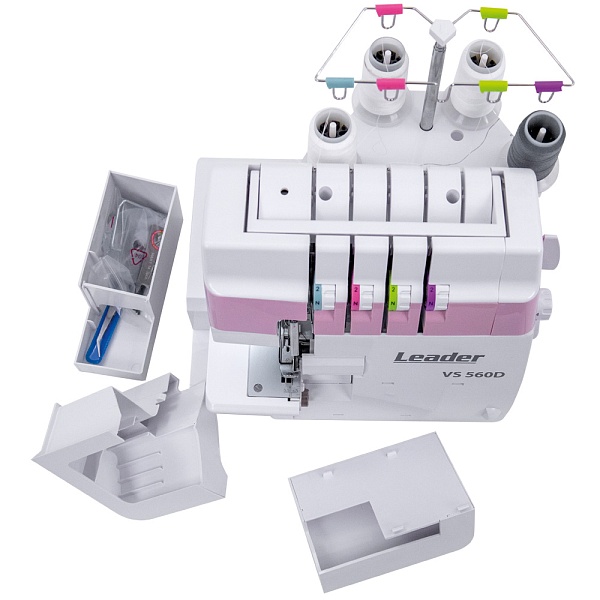

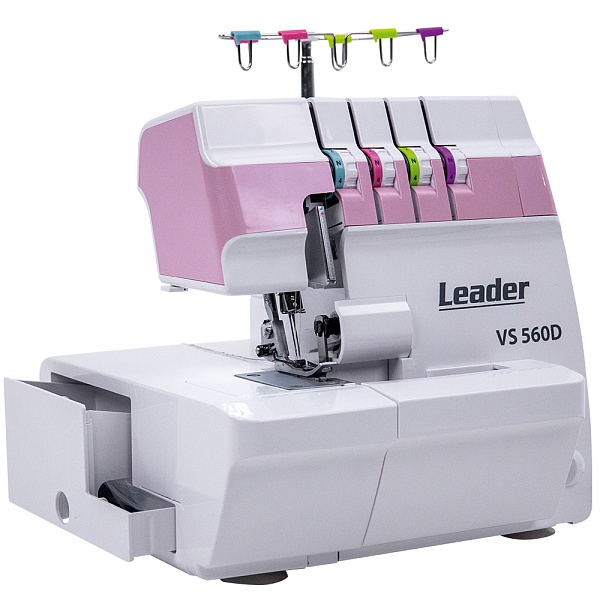

  • A spacious built-in compartment is located on the left side of the overlocker’s lower panel, providing convenient storage for accessories.
  • The standard package additionally includes a lower knife and fabric guide.
  • A safety system is provided: when the looper cover is open, the lock is activated and the overlocker does not operate.

The Leader VS 560D overlocker is a reliable assistant in accomplishing your tasks!

Functions and specifications

  • Stitch length: 1–4 mm
  • Overlock width: up to 7 mm
  • Differential fabric feed: 0.7–2.0
  • Presser foot lift height: 5/6 mm
  • Easy threading of the upper looper: yes
  • Convenient threading of the lower looper: yes
  • Pull-out storage compartment for accessories: yes
  • Removable free arm panel: yes
  • Waste collector: yes
  • Lockout sensor when the looper cover is open: yes
  • Maximum sewing speed: 1200 stitches/min
  • Number of stitches: 14
  • Power: 90 W
  • Manufactured in: China
  • Gross weight: 8.5 kg

Types of stitches

  • 4-thread safety stitch
  • 3-thread stretch stitch
  • 3-thread wide stitch
  • 3-thread narrow stitch
  • 3-thread wide flatlock (Flatlock)
  • 3-thread narrow flatlock (Flatlock)
  • 3-thread rolled hem
  • 3-thread rolled stitch
  • 2-thread wide stitch
  • 2-thread narrow stitch
  • 2-thread wide flatlock (Flatlock)
  • 2-thread narrow flatlock (Flatlock)
  • 2-thread rolled hem
  • 2-thread rolled stitch
